Fluorine in PDB 9dgi: Cannabinoid Receptor 1-Gi Complex with Novel Ligand

The binding sites of Fluorine atom in the Cannabinoid Receptor 1-Gi Complex with Novel Ligand (pdb code 9dgi). This binding sites where shown within 5.0 Angstroms radius around Fluorine atom.
In total 3 binding sites of Fluorine where determined in the Cannabinoid Receptor 1-Gi Complex with Novel Ligand, PDB code: 9dgi:
Jump to Fluorine binding site number: 1; 2; 3;

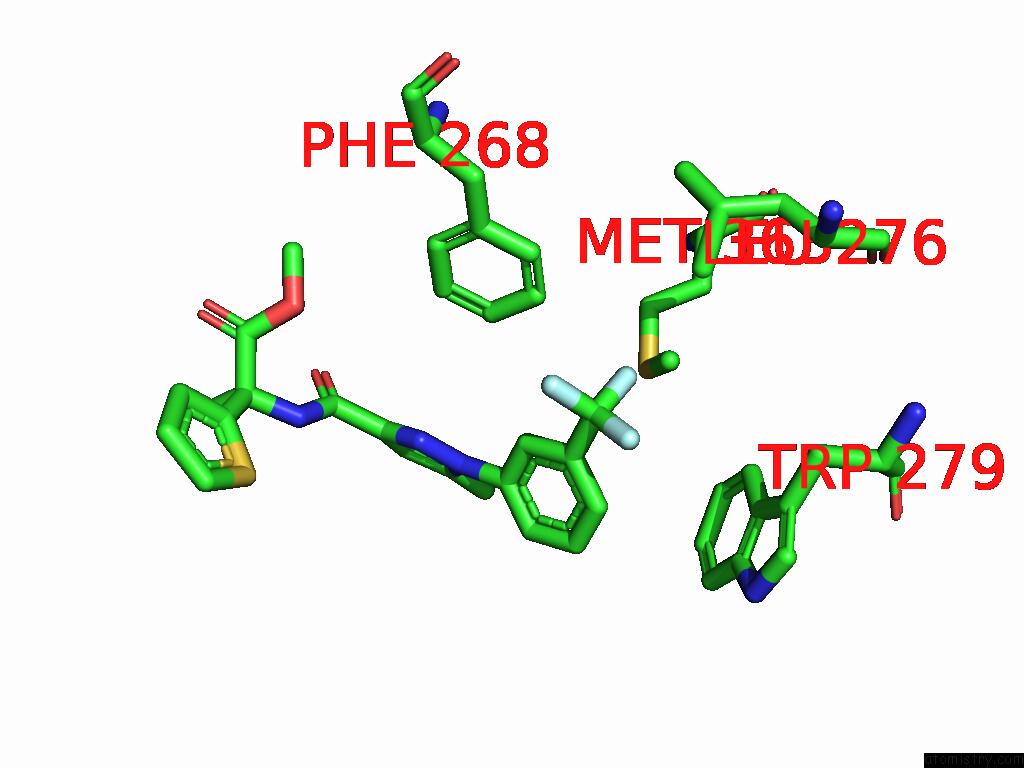

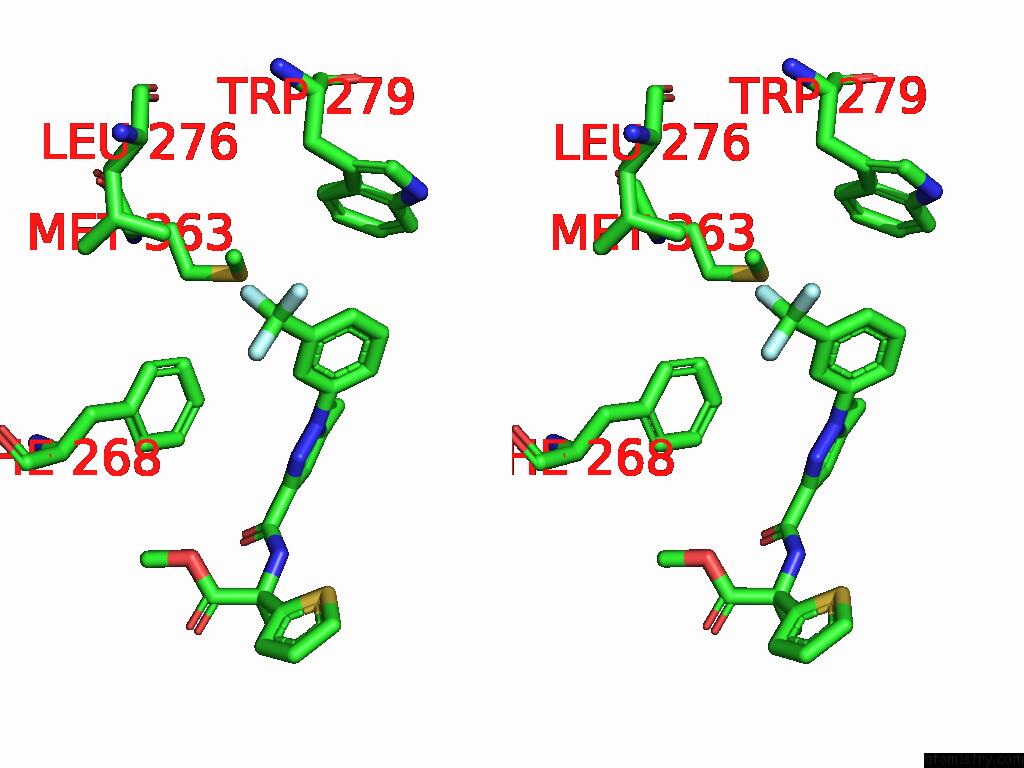

Fluorine binding site 1 out of 3 in the Cannabinoid Receptor 1-Gi Complex with Novel Ligand


Mono view


Stereo pair view

A full contact list of Fluorine with other atoms in the F binding site number 1 of Cannabinoid Receptor 1-Gi Complex with Novel Ligand within 5.0Å range: probe atom residue distance (Å) B Occ R:F501 b:73.5 occ:1.00 F20 R:YVF501 0.0 73.5 1.0 C19 R:YVF501 1.4 73.5 1.0 F21 R:YVF501 2.2 73.5 1.0 F22 R:YVF501 2.2 73.5 1.0 C18 R:YVF501 2.3 73.5 1.0 C17 R:YVF501 3.1 73.5 1.0 CD2 R:LEU276 3.2 62.5 1.0 C23 R:YVF501 3.3 73.5 1.0 CE2 R:PHE268 3.3 66.9 1.0 CE R:MET363 3.6 75.7 1.0 CD2 R:PHE268 3.9 66.9 1.0 CZ R:PHE268 4.2 66.9 1.0 CE3 R:TRP279 4.3 67.4 1.0 C16 R:YVF501 4.3 73.5 1.0 C24 R:YVF501 4.5 73.5 1.0 CD2 R:TRP279 4.7 67.4 1.0 CG R:LEU276 4.7 62.5 1.0 CZ3 R:TRP279 4.7 67.4 1.0 C25 R:YVF501 4.9 73.5 1.0

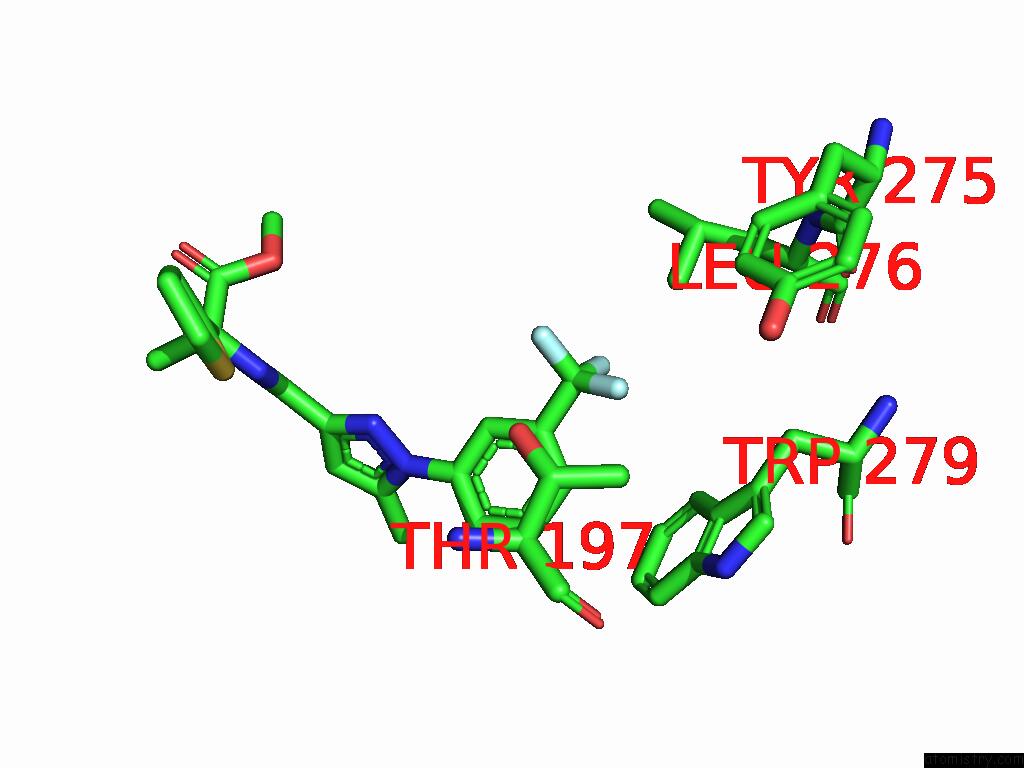

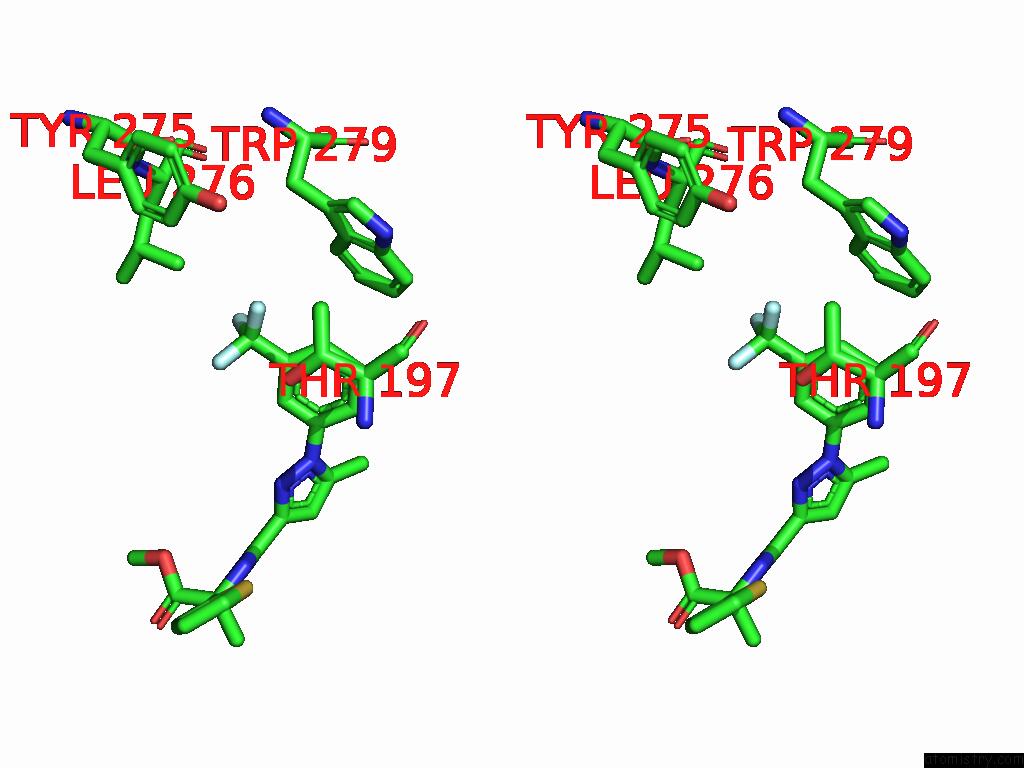

Fluorine binding site 2 out of 3 in the Cannabinoid Receptor 1-Gi Complex with Novel Ligand


Mono view


Stereo pair view

A full contact list of Fluorine with other atoms in the F binding site number 2 of Cannabinoid Receptor 1-Gi Complex with Novel Ligand within 5.0Å range: probe atom residue distance (Å) B Occ R:F501 b:73.5 occ:1.00 F21 R:YVF501 0.0 73.5 1.0 C19 R:YVF501 1.4 73.5 1.0 F20 R:YVF501 2.2 73.5 1.0 F22 R:YVF501 2.2 73.5 1.0 C18 R:YVF501 2.4 73.5 1.0 C23 R:YVF501 2.7 73.5 1.0 C17 R:YVF501 3.6 73.5 1.0 CG2 R:THR197 3.6 68.6 1.0 OG1 R:THR197 3.7 68.6 1.0 C24 R:YVF501 4.1 73.5 1.0 CG R:TRP279 4.3 67.4 1.0 CD2 R:TRP279 4.3 67.4 1.0 CB R:THR197 4.3 68.6 1.0 CE2 R:TYR275 4.5 58.8 1.0 CB R:TRP279 4.5 67.4 1.0 CE3 R:TRP279 4.6 67.4 1.0 CD1 R:TRP279 4.6 67.4 1.0 CD2 R:LEU276 4.7 62.5 1.0 CE2 R:TRP279 4.7 67.4 1.0 C16 R:YVF501 4.7 73.5 1.0 NE1 R:TRP279 4.9 67.4 1.0 C25 R:YVF501 4.9 73.5 1.0

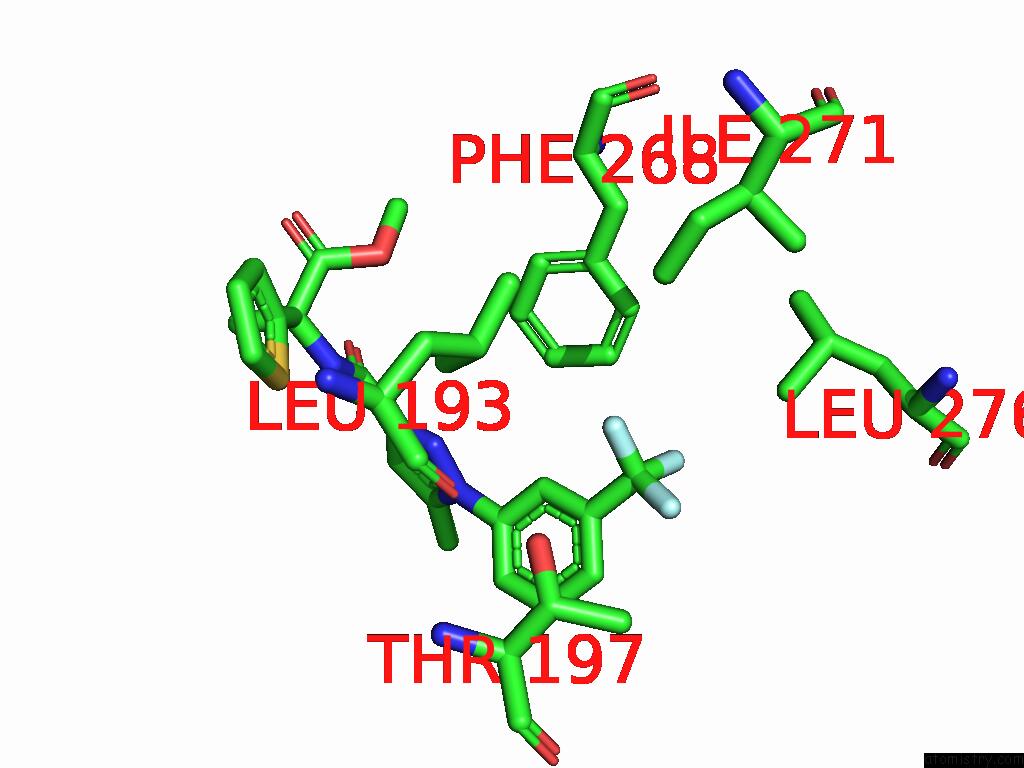

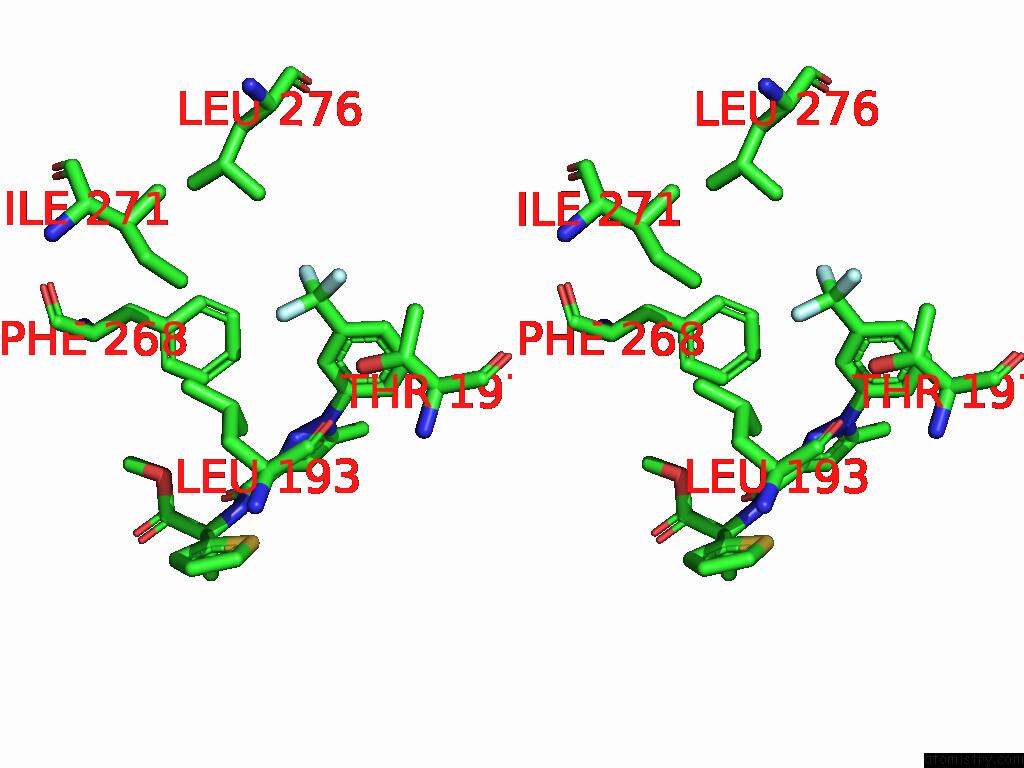

Fluorine binding site 3 out of 3 in the Cannabinoid Receptor 1-Gi Complex with Novel Ligand


Mono view


Stereo pair view

A full contact list of Fluorine with other atoms in the F binding site number 3 of Cannabinoid Receptor 1-Gi Complex with Novel Ligand within 5.0Å range: probe atom residue distance (Å) B Occ R:F501 b:73.5 occ:1.00 F22 R:YVF501 0.0 73.5 1.0 C19 R:YVF501 1.4 73.5 1.0 F20 R:YVF501 2.2 73.5 1.0 F21 R:YVF501 2.2 73.5 1.0 C18 R:YVF501 2.4 73.5 1.0 C17 R:YVF501 2.8 73.5 1.0 CE2 R:PHE268 3.4 66.9 1.0 C23 R:YVF501 3.5 73.5 1.0 CD2 R:PHE268 3.7 66.9 1.0 CD1 R:ILE271 4.0 64.2 1.0 OG1 R:THR197 4.0 68.6 1.0 CZ R:PHE268 4.0 66.9 1.0 C16 R:YVF501 4.1 73.5 1.0 CD1 R:LEU193 4.4 71.1 1.0 CG R:PHE268 4.5 66.9 1.0 C24 R:YVF501 4.7 73.5 1.0 CG R:LEU193 4.7 71.1 1.0 CD2 R:LEU276 4.7 62.5 1.0 CE1 R:PHE268 4.8 66.9 1.0 N14 R:YVF501 4.9 73.5 1.0 C25 R:YVF501 4.9 73.5 1.0 CD2 R:LEU193 4.9 71.1 1.0 N15 R:YVF501 5.0 73.5 1.0 CD1 R:PHE268 5.0 66.9 1.0

T.A.Tummino, C.Iliopoulos-Tsoutsouvas, J.M.Braz, E.S.O'brien, K.Krishna Kumar, M.Makriyannis, A.I.Basbaum, B.K.Shoichet. Virtual Library Docking For Cannabinoid-1 Receptor Agonists with Reduced Side Effects Nat Commun 2025.
ISSN: ESSN 2041-1723
DOI: 10.1038/S41467-025-57136-7
